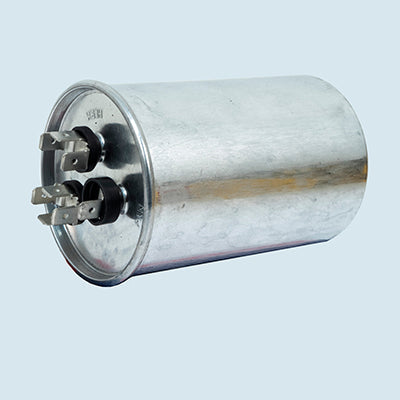

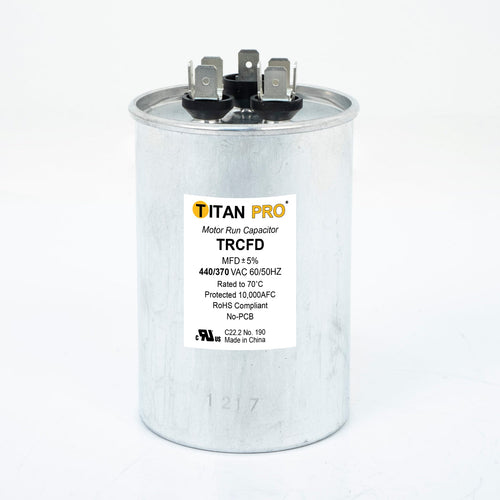

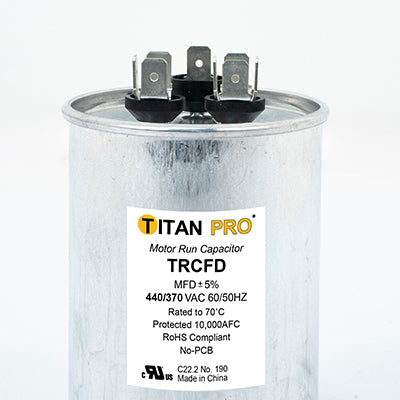

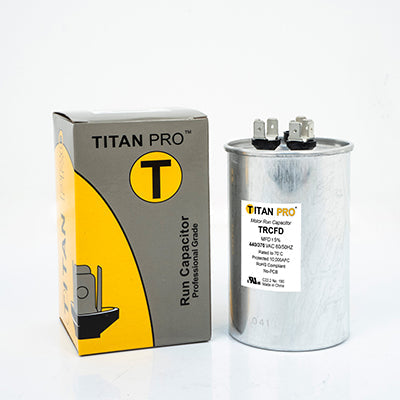

Titan Pro Run Capacitor 45+5 MFD 440/370 Volt Round

Titan Pro

+ -

Applications/Features

Not all capacitors are built the same. Take it to the PRO level. At 60,000 hours of operational life, Titan PRO™ Professional Grade Motor Run Capacitors get the job done by outperforming standard motor run capacitors of similar value by 83%!

    RELIABLE

    60,000 hours operational life

    FLEXIBLE

    Titan PRO™ 440/370 volt design reduces inventory

    Titan PRO™ 370 volt offers best in class value

    COMPLIANT

    Built to the toughest international standards for AC motor run capacitors including EIA-456-A and IEC 60252-1:2001

    TESTED

    100% electrical testing

    REINFORCED

    Heavy-edged metalized polypropylene film is used for the dielectric

    Proprietary bio-degradable oil

    Second generation anti-explosion safety switch

    Item Specifications

    Capacitor Voltage 440/370
    Run MFD 45+5
    Height (In) 3.74
    Capacitor Shape Round
    Brand Titan Pro
    Country of Origin CHINA
    Diameter (In.) 2.5
    Hertz 50/60
    Material Aluminum
    Oil Type Soybean Based
    Operating Temperature Range -40 to 70
    Terminals Standard blade terminals
    Tolerance +/- 5%
    UPC 840899104645
    Voltage 440/370
